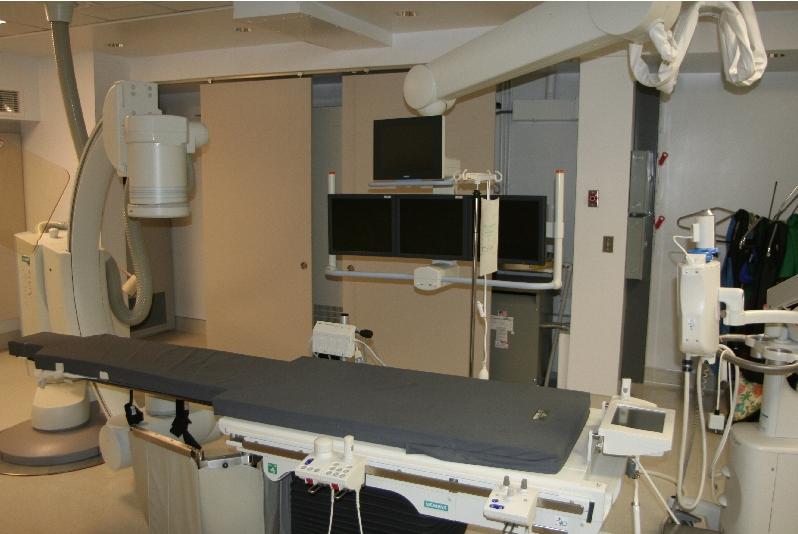

2006 Siemens Axiom Artis FC Floor Mounted C-Arm Cardiac Angiography System

This all-digital single-plane C-arm angiography system is designed to give you unprecedented cardiac imaging performance and an expansive range of diagnostic and interventional applications – from cardiac angiography to ECG-triggered fluoroscopy.

  • Floor-mounted interventional imaging solution with flat detector technology
  • Compact and slim-line C-arm design
  • Fast and flexible C-arm positioning around the patient
  • Excellent image quality through CLEAR technology
  • Easy and intuitive system control
  • World-class integration with the AXIOM Sensis XP recording system
  • Considerable radiation reduction with CARE

    • counter free hit unique web

    .

    System Design
    The MULTISPACE.F option has an integrated gantry/table design to provide all working positions needed for interventional procedures. The gantry stand rotation allows free positioning of the C-arm and table relative to one another – as a result, almost any projection and angle are possible.
    The detector and collimator rotation of AXIOM Artis dFC allows upright image display for acquisition and fluoroscopy, even when the system gantry is in any position, from the patient’s left to the patient’s right. This gives the clinician the flexibility to perform examinations at any gantry position, organize the clinical environment accordingly, achieve greater patient access, and always see images in the correct orientation! This allows you to enhance your workflow and patient care.

    Detector and imaging system
    Our high-resolution detector provides excellent spatial resolution and higher contrast resolution compared to an image intensifier. This significantly improves image quality for interventional procedures.

    Flat detector 20 x 20
  • Dedicated cardiac detector (25 cm, 20 cm, and 17 cm diagonal input fields)
  • Outstanding spatial resolution (2.7 Lp/mm)
  • High dynamic range (14-bit digitalization depth)
  • No vignetting

    Flat detector 30 x 40
  • Excellent access and coverage (portrait and landscape viewing)
  • Outstanding spatial resolution (3.25 Lp/mm)
  • Highest dynamic range (14-bit digitalization depth)
  • No vignetting
